Divesoft Solo Analyser (nitrox and trimix analyser)

In stock
SKU
SOLOANALYZER
Rating:
0%
£761.05 £634.21
In stock

Call us on +44 (0)1933 681255 (option 1) to order by phone

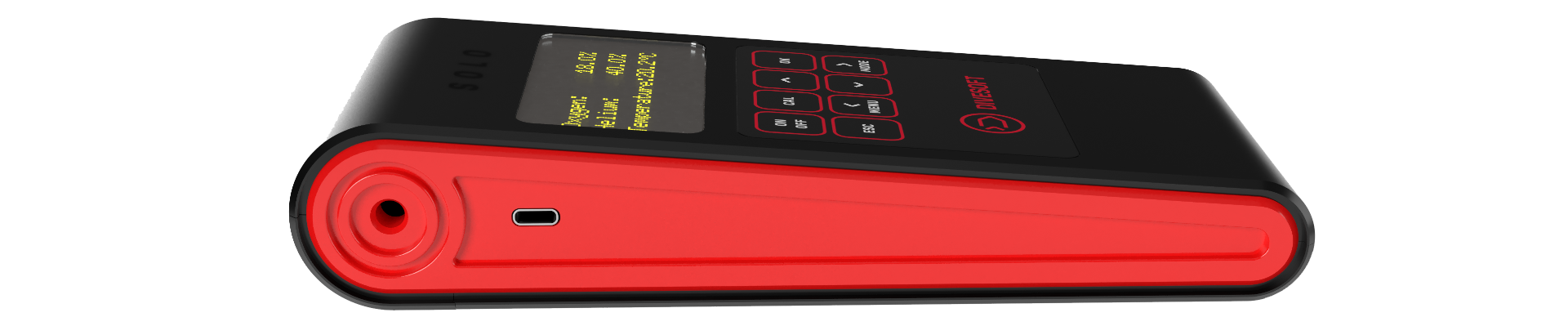

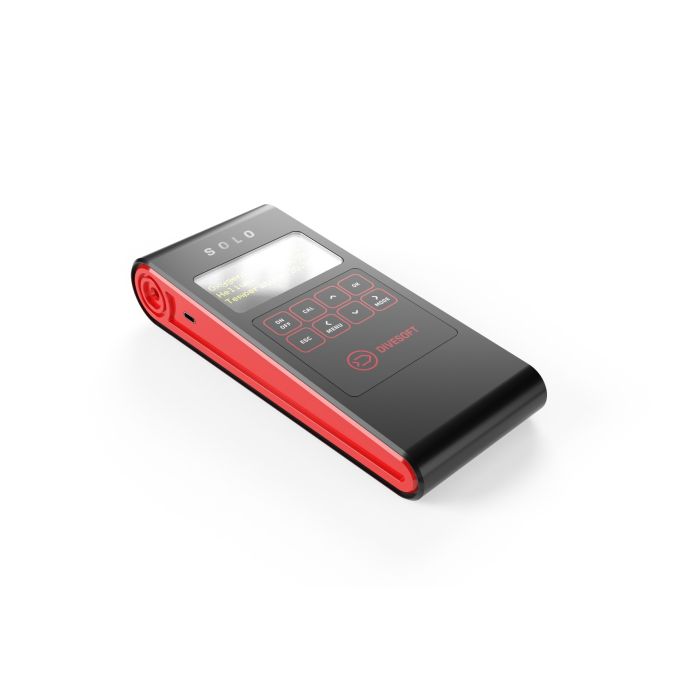

Introducing The New Divesoft SOLO Analyzer

THE DIVESOFT SOLO ANALYZER MAKES GAS ANALYSIS SIMPLE, ACCURATE AND RELIABLE. WITH SOLO, YOU WILL ALWAYS KNOW WHAT YOU ARE BREATHING WHEREVER YOU GO.

The lightweight and robust body is made from ABS-PC. Our new analyzer offers an easy-to-read display and intuitive controls. The USB-C connector makes it easy to program and takes less than 4 hours to fully charge. The three-point calibration system ensures accurate measurements, so you can head out with confidence and explore the depths.

Analyzer SOLO is made from durable material and is an ideal travel companion.

Using our patented helium measuring method, which is also used in our Liberty rebreathers, we can determine the helium content of gases using the change in the speed of sound. Without the need to ever replace your Helium sensor.

TECHNICAL SPECIFICATIONS

  • Dimensions: 85 × 205 × 40 mm (31/4 × 77/8 × 11/2 inches)
  • Weight: 420 g (without packaging and accessories)
  • Oxygen concentration measurement range: 0 to 100%
  • Helium concentration measurement range: 0 to 100%
  • Measurement temperature: 0 to + 40 ° C (32 - 104 ° F)
  • Mixture Pressure: Corresponds to an ambient pressure in the range of 700-1100 millibars (20-32 inches Hg), which corresponds to a standard atmosphere at 0 to 3000 m (0-10000 ft)
  • Nominal gas flow rate: 0.2 l / min
  • Sound speed measurement base: 800 mm
  • Measuring cycle: 200ms
  • The connection dimensions of the sampler: Standard for a DIN valve (EN 144-2) for 200/300 bars (G 5/8 thread). Samplers with a connection to any standardized or common valves are available on request or as optional equipment
  • Oxygen sensor: R22 S (Molex connector)
  • Easy to replace O2 sensor
  • Oxygen sensor life expectancy: 2 years
  • Replaceable battery: Through authorised service centre
  • Battery: 120 measurements or 4 hours of continuous operation
  • Warranty: 24 months, 12 months on battery
  • Charging and programming: USB-C
  • Charging time: 3-4 h
  • Display: OLED
  • Body: ABS-PC

Package contents:

  • Analyzer SOLO
  • USB-C cable
  • Simple flow limiter
  • Case

User Manual:

To download the Divesoft SOLO Analyzer user manual click here.

Technical Specification
SKU SOLOANALYZER
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Delivery

we try to hold stock of all products, but if showing out of stock there may be a few days wait while new stock arrives.

Simple and powerful features

  • Infinite Measuring

    Infinite Measuring

    Our method of measuring helium does not use any electrochemical sensors, removing the need to ever replace it.

  • USB-C Connector

    USB-C Connector

    The USB-C connector offers an easy and simple way to program and charge the unit in less than 4 hours.
