Ratio Oxygen Analyser (without OXY Cell)

In stock

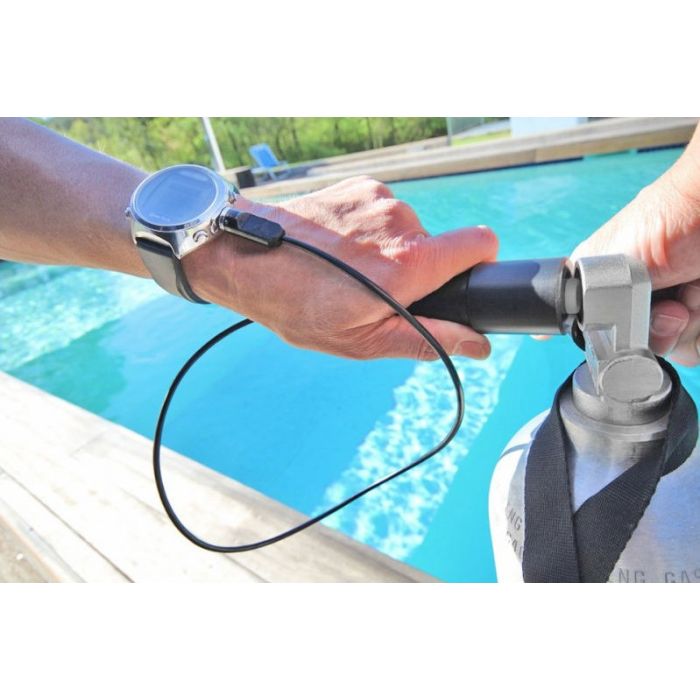

Turn your iDive or iX3M in a professional, fully automatic Gas Mix Analyser.
(OXY Cell is not included) FIND HERE

£212.00 £254.40
In stock

Call us on +44 (0)1933 681255 (option 1) to order by phone

This lovely little o2 analyser only fits the Ration computer range but turned those computer into an easy to use analyser!

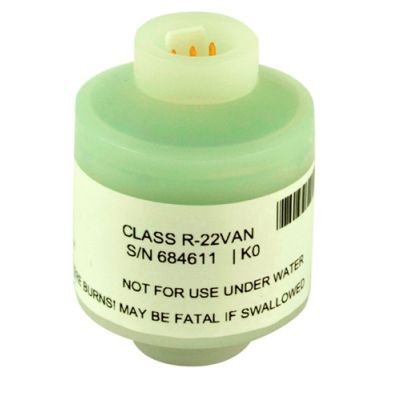

Sensor: Electrochemical (compatible with Vandagraph R-22VAN you can find HERE) or you could use an old molex rebreather sensor!
Range: 0.1-100%,
Resolution: 0.1%
Accuracy: +/- 1%

Temperature of use: 0 -> +40°C
Temperature of stock: 0 -> +50°C
Sensor life-time: about 36 months (at 25°C, 50% R.H., sea level, with protection cap plugged) (from a new sensor)

User-replaceable sensor
Sensor update time: c.a. 10sec

user-replaceable battery
Battery type: 1.5V type N, LR1, MN9100,AM5, 4001 (standard)

Automatic calibration of the sensor: Yes
Automatic validation of the sensor: Yes


What's in the box

Oxygen analyser

1 battery 1.5V type N, LR1, MN9100,AM5, 4001 (standard)
1 protective cap for sensor

Technical Specification
